vM CA470
Control Amplifier |
| |
Description

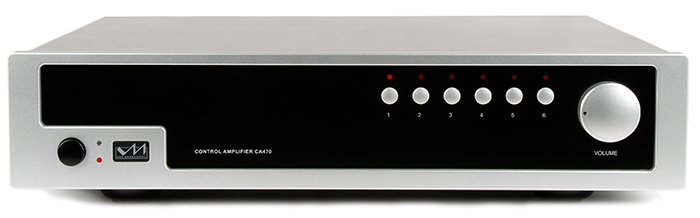

The Van Medevoort CA470 stereo pre-amplifier is built with very fast,
low-distortion, discrete class ’A’ line stages in cascode technology.
This produces the highest quality musical performance for any type of
music. The housing is extremely sturdy with a high quality silver /
black finish. Only audiophile quality components are used. One gold
plated XLR input is installed for an optimal connection with your DAC,
CD- or Media player. Five RCA inputs are available to connect other
sources and there are three pre-amp outputs, one is XLR balanced for
your PA power amp(s). A remote output is fitted to switch the vM power
amplifier on and off. |
| |
Features
• Six input, two channel control amplifier
• XLR and RCA gold plated connectors
• High slew rate for outstanding transient response
• Highly musical performance, low distortion
• Gold plated relays in switching and muting circuitry
• Remote controlled inputs, volume and power
• With DC and RC output for switching power amps or sources
• Silver / black finished front plate |
 |
|
| |
Specifications |
|
| |
|
| Amplifier channels |
2 |
| Input impedance |
50 kOhms |
| Channel separation |
> 100 dB / 1.5 -100,000
Hz |
| Distortion |
< 0.002 % / 1.5 -100,000
Hz |
| Output impedance |
< 50 Ohms |
| Output level nom. |
1.5 Veff. |
| Gain |
16 dB |
| Signal to
noise ratio |
> 100 dB |
| Inputs / connectors |
6 / 1x XLR + 5x RCA |
| Outputs / connectors |
3 / 1x XLR + 2x RCA |
| Power supply |
115-230 Volt / 50-60 Hz |
| Power consumption |
6/15 Watt standby/max |
| Weight |
9.5 kg |
| Size W x H (H+Feet) x D |
434 x 88 (102) x 395 mm |
| |
|
| Options |
vM Silver Cable |
|
|
|
Van Medevoort Audio Products
|
|
|
|
|
|
|
