vM DA470
D/A Converter PCM / DSD |
| |

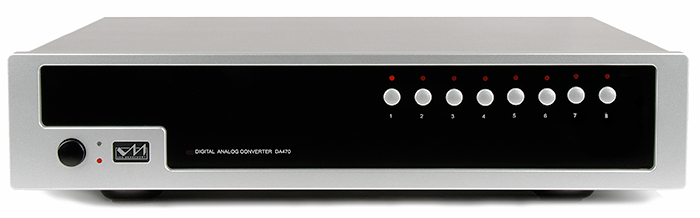

| The Van Medevoort DA470 two channel D/A-converter with
8 inputs is built with very high grade audio components, the best
sounding AKM chip-sets, with extreme low distortion and jitter for the
most musical performance with any kind of music. The cabinet is very
rigid with a beautiful finish and completed with a very exclusive front
plate. Only high grade parts of audiophile quality are used. Three SPDif
switchable inputs for different connections. Q-Link, exclusive i2s
inputs for the best connections of for instance the vM CT470 CD
transport and other PCM and DSD sources. 2x vM Super Q-Clock with
buffers for all individual digital disciplines. No matter which input
format is offered, the asynchronous SRC lets the two mono DAC chips
always work in its most optimal frequency and resolution for optimal
music experience. |
| |
Features
● Stereo D/A converter for all SPDif,
PCM, DSD and DoP sources
● 8 inputs, 3 switchable, up to 11
sources can be connected
● SPDif input 3 switchable between
XLR and RCA
● SPDif inputs 4 and 5 switchable
between RCA and optical
● 2x Q-link inputs 6 and 8 for high
quality / professional i2s PCM or DSD via RCA
● USB-B input 7 with own converter,
2x low jitter Clock and power supply
● Sample Rate Converter,
asynchronous PCM and DSD
● 2x D/A converter Chips, dual mono
symmetrical, balanced
● For every input format, conversion
is always High Resolution
● 2x vM Q-Clocks with buffers for
SPDif, Q-Link, SRC and two DAC’s
● Two power transformers, separated
for digital and analog supply
● Each section has its own discreet
built stabilized power supply
● Analog output stages are DC
coupled, no capacitors in the signal path
● High bias setting, no x-over
distortion, 110 kHz Chebychev low pass filters
● Balanced XLR and unbalanced RCA
cinch analog outputs
● RCA coax and optical digital
outputs with jitter reduction
● Best musical performance, very low
distortion and jitter
● Only audiophile components and the
best sounding AKM chips are used
● Gold plated printed circuit
boards, gold contact relays and vM Silver Wire
● Gold plated digital and analog
signal connectors
● Remote control functions for input
selection and stand-by
● Front plate: silver / black |
 |
|
| |
Specifications |
|
| |
|
| SPDif inputs RCA / XLR |
24bit - 192 kHz 75 / 110
Ohms |
|
SPDif inputs optical |
24bit - 96
kHz |
| Q-Link input 6 PCM |
i2s CD format / 16bit -
44.1kHz |
| USB input 7 PCM / DSD |
32bit - 768kHz / 512fs (native)
/ 256fs (DoP) |
| Q-Link input 8 PCM / DSD |
32bit - 768kHz / 512fs |
| SRC / DA |
512fs DSD |
| Output voltage nom. |
2.2 Volt |
| Output impedance |
< 50 Ohms |
| Signal / noise ratio |
> 128 dB |
| Distortion |
< 0.0018 % /
0.1 -110.000 Hz |
| Power supply |
230-240 Volt / 50-60 Hz |
| Power consumption |
10/25 Watt stand-by/on |
| Weight |
9.0 kg |
| Size w x h (h+feet) x d |
434 x 88 (102) x 395 mm |
| |
|
| Options |
●
vM Silver Cable |
|
|
|
